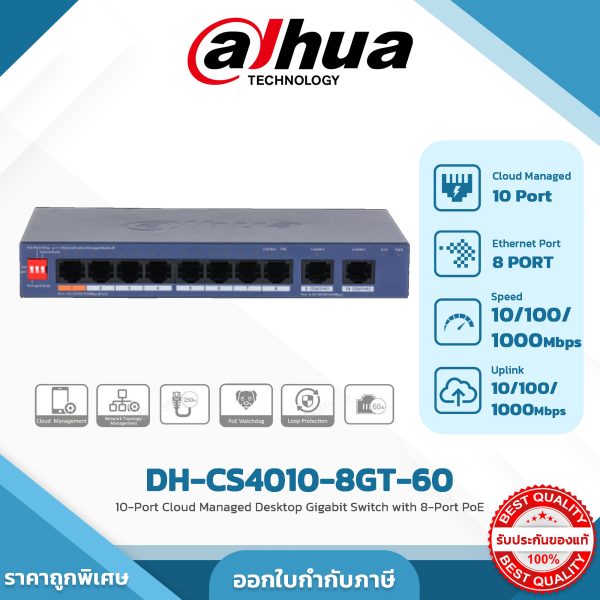

Cloud Switch รุ่น DH-CS4010-8GT-60 10-Port Cloud Managed Desktop Gigabit Switch with 8-Port PoE

Basic

Layer

Layer 2

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

External Power Adapter (53 V, 1.22 A)

Power Consumption

Idling: 4 W
Full load: 63 W

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 6 kV
Differential mode: 1 kV

Net Weight

0.36 kg (0.79 lb)

Gross Weight

0.95 kg (2.09 lb)

Product Dimensions

184.6 mm × 103.3 mm × 27 mm (7.27″ × 4.07″ × 1.06″) (L × W × H)

Packaging Dimensions

252 mm × 137 mm × 113 mm (9.92″ × 5.39″ × 4.45″) (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; wall mount

Certifications

CE

PoE

PoE

Yes

PoE Power

Port 2-8≤30 W, port 1≤60 W, total≤60 W

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE

PoE Power Consumption Management

PoE power consumption management; PoE power on/off; turns off PoE if overload is detected

PoE Pin Assignment

1,2, (V+), 3 ,6, (V-)

Long Distance PoE Transmission

Yes

Hardware

DIP Switch

Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)

Reset Button

1

Performance

MTBF

2,482,955 hours

Packet Buffer Size

4 Mbit

Jumbo Frame

15360 Byte

MAC Table Size

8K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3ad

VLAN Number

32

Feature

Ethernet Loop Protection

STP; RSTP

VLAN Function

IEEE 802.1Q VLAN

Link Aggregation

Static Aggregation

Port Feature

IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention

Mirror

Local Port Mirroring
N:1 Mirroring

Reliability

LLDP

DHCP Function

DHCP Client

Security

Port Isolation

Equipment Management

Web Management
Cloud Management
Logs
Fault Alarm

General

Packing List

1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter

Ordering Information

Type

Model

Description

SFP module

GSFP-1310T-20-SMF

1.25G 1310/1550nm,20km,LC, Single-mode

GSFP-1310R-20-SMF

1.25G 1550/1310nm,20km,LC, Single-mode

GSFP-1310-20-SMF

1.25G 1310nm,20km,LC, Single-mode

GSFP-850-MMF

1.25G 850nm,550m,LC, Multi-mode

Transmission Performance:

Switch power supply voltage 54V.
CAT6. Max. DC resistance < 8 Ω/100 m

Cable(m)

Load Capacity(W)

Hi-PoE 60 W

100

46

150

42

200

37

250

32

IEEE802.3at 30 W

100

25.5

150

25.5

200

25.5

250

24
